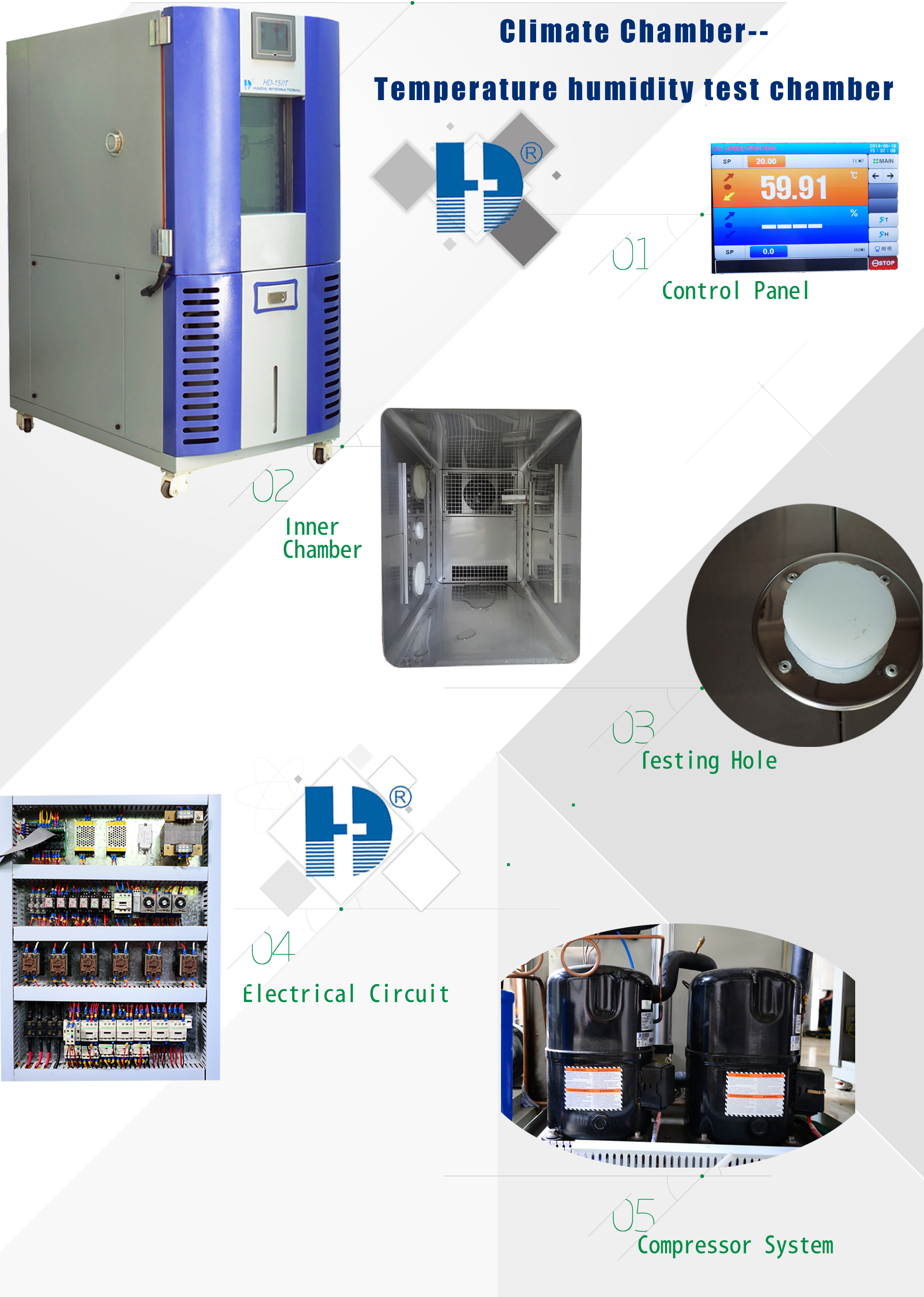

Environmental Temperature Humidity Test Chamber With Climatic Simulation
Product Introduction:
Environmental Temperature and Humidity Test Chamber can give you an economical and space-saving solution for a variety of testing requirements. Temperature humidity test chamber can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.
HD-E702-100-7 Climate Chamber.pdf
Standard Features:
| Model | HD-E702-100-7 |
| Internal dimension (W*D*H) | 400*500*500mm |
| External dimension (W*D*H) | 600*1280*1380mm |
| Temperature range | -70~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor x 2sets |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Applications
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Programmable Controller
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

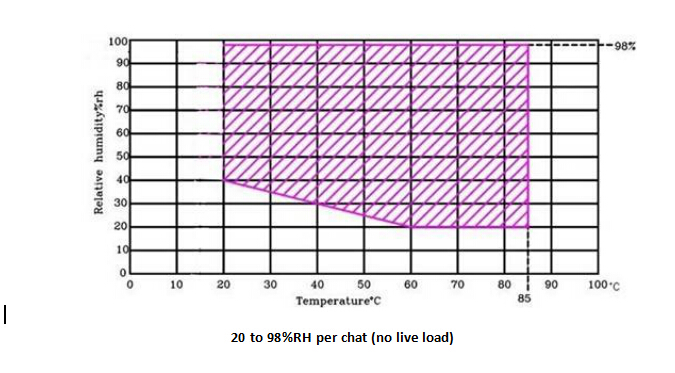

Humidity Range
